Steering Pump Control and Alarm Panels
Steering pump control and alarm panels are used for starting/stopping pump motors and for alarm monitoring functions. The SAP-CAN version is designed for use in the engine control room and does not include pump start/stop functionality. Thanks to the CAN-Bus system, multiple panels can be integrated into the system simultaneously.

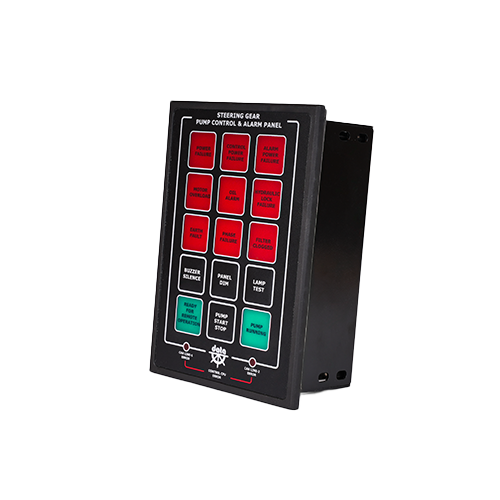

Steering Bridge Control and Alarm Panels - SCP-CAN
Features
Power Supply: 24V DC
Dimensions: Height 136 mm × Width 96 mm × Depth 70 mm
Degree of Protection: IP65 (front panel)
Operating Temperature: -20°C to +70°C
Network: CAN-Bus (Control Area Network) (2 × 2 × 0.50 twisted pair cable, redundant dual line)
Connection: Phoenix Contact TFMC 1.5/5-STF-3.5 female connector
Motor Start/Stop: (SAP-CAN model does not include start/stop function)
Monitoring of 9 visual and audible alarms
Indicator backlight brightness control
Buzzer mute function
Lamp test function
Network fault alarm indicator
Material: Black anodized aluminum
Touch keypad: Controlled via tactile switches providing real touch feedback
Multiple panel installation capability via CAN-Bus system
Marine Type Approved
Options
Different labeling options for 24 VDC, 220 VAC (single-phase), and 380 VAC (three-phase)
Use of digital inputs/outputs (I/O) instead of CAN-Bus
Bridge Control and Alarm Panels – SCAP-CAN
Features
Power Supply: 24V DC
Dimensions: Height 136 mm × Width 96 mm × Depth 70 mm
Degree of Protection: IP65 (front panel)
Operating Temperature: -20°C to +70°C
Connection: Wago 713-1108/037-000 female connector
Monitoring of 9 visual and audible alarms
Indicator backlight brightness control
Buzzer mute function
Lamp test function
Material: Black anodized aluminum
Touch keypad: Controlled via tactile switches providing real touch feedback
Options
Various labeling options available
SAP-S Steering Pump Alarm Panel
Features
Power Supply: 24V DC
Dimensions: Height 96 mm × Width 72 mm × Depth 70 mm
Degree of Protection: IP65 (front panel)
Operating Temperature: -20°C to +70°C
Connection: Wago 713-1106/037-000 female connector
Monitoring of 5 visual and audible alarms
Material: Black anodized aluminum
Touch keypad: Controlled via tactile switches providing real touch feedback
Buzzer mute function
Lamp test function
