Hydraulic Systems
DATA hydraulic systems are specially designed to support windlasses and capstans. Thanks to modular control valves, they can also be configured to power other hydraulic consumers on board.
As with all other DATA products, DATA hydraulic systems are designed with the same meticulous priorities:
- Reliability
- Safety
- High performance
- Easy and safe installation
- Easy maintenance
- Long operating life
The most important feature of a fully equipped hydraulic system is that it is delivered as ready for installation as possible.
DATA hydraulic systems require only external hydraulic and electrical connections on board, providing significant savings in installation time and labor.
All our hydraulic systems are supplied with the necessary technical drawings and installation manuals to ensure correct and easy installation, as well as long-term reliable operation.
HPU for 2 Windlasses with Single Electric Motor
HPU for 2 Windlasses with Dual Electric Motor
HPU Tank for PTO Driven Central Hydraulic System

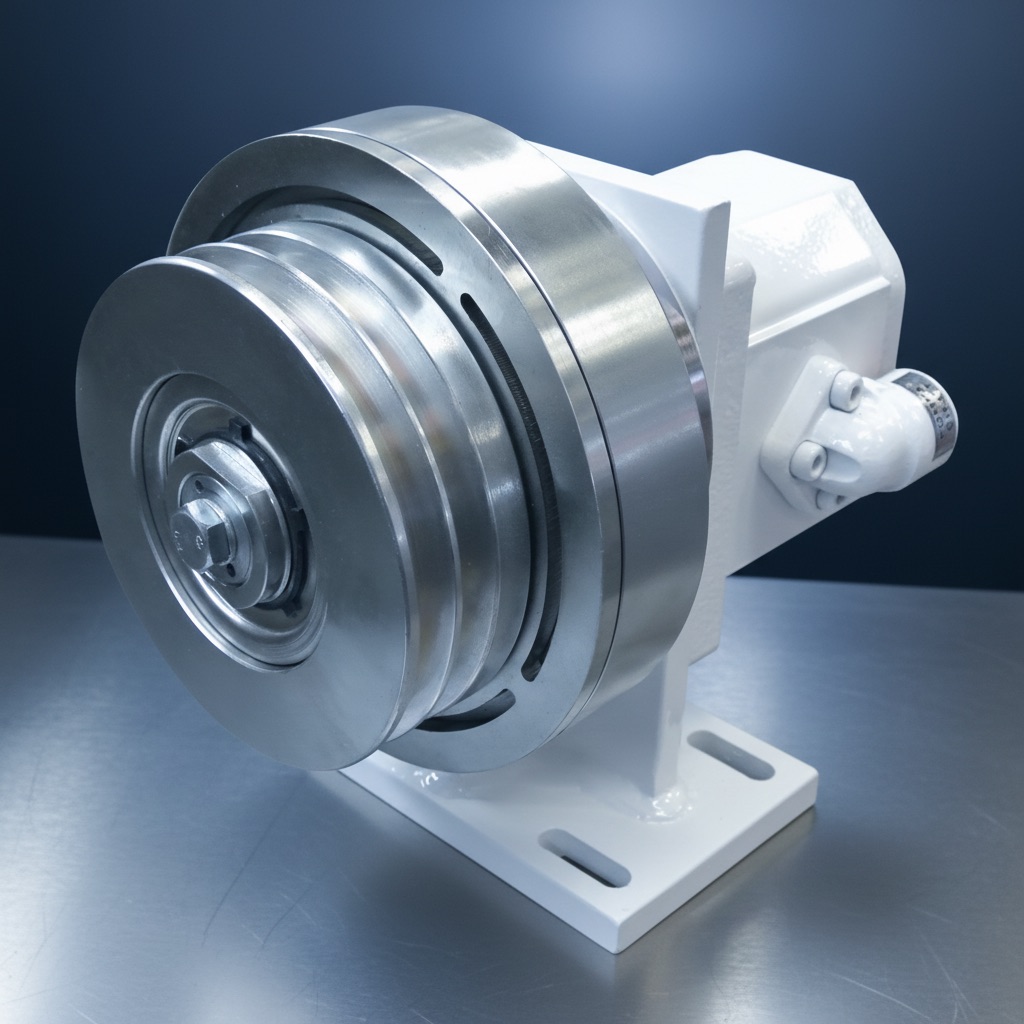

Main Engine Belt-Driven Hydraulic Pump with Electromagnetic Clutch
Features
Equipped with first-class hydraulic components from well-known brands.
Large oil tanks providing easy heat transfer and self-cooling capability.
Suction filter with service indicator and return line filter.
Oil level and temperature indicator.
Filtered and ventilated oil filler caps.
DOL starter up to 5.5 kW and star–delta starter system for motors above 7.5 kW.
Options
Electric motor driven pumps.
Main engine PTO (Power Take-Off) driven pumps.
Manually operated (dog clutch) or electromagnetic clutch, engine belt-driven pumps.
HPU systems with fixed or variable displacement pumps.
Cooling by seawater heat exchanger or air fan cooler.
Proportional valve control system.
Pressure filter.
Oil level switch for low oil level alarm.
Starter output alarm for connection to the ships AMS (Alarm Monitoring System) system.
Anti-vibration mounting feet.
Soft starter or frequency converter starter option.
Custom-designed HPU solutions upon customer request.
